Catalog

The catalog is a WebView journey driven by FeatureRoute.Catalog. Host UX (categories, preferences, favorites entry points, basket CTA, …) matches Mealz SSR.

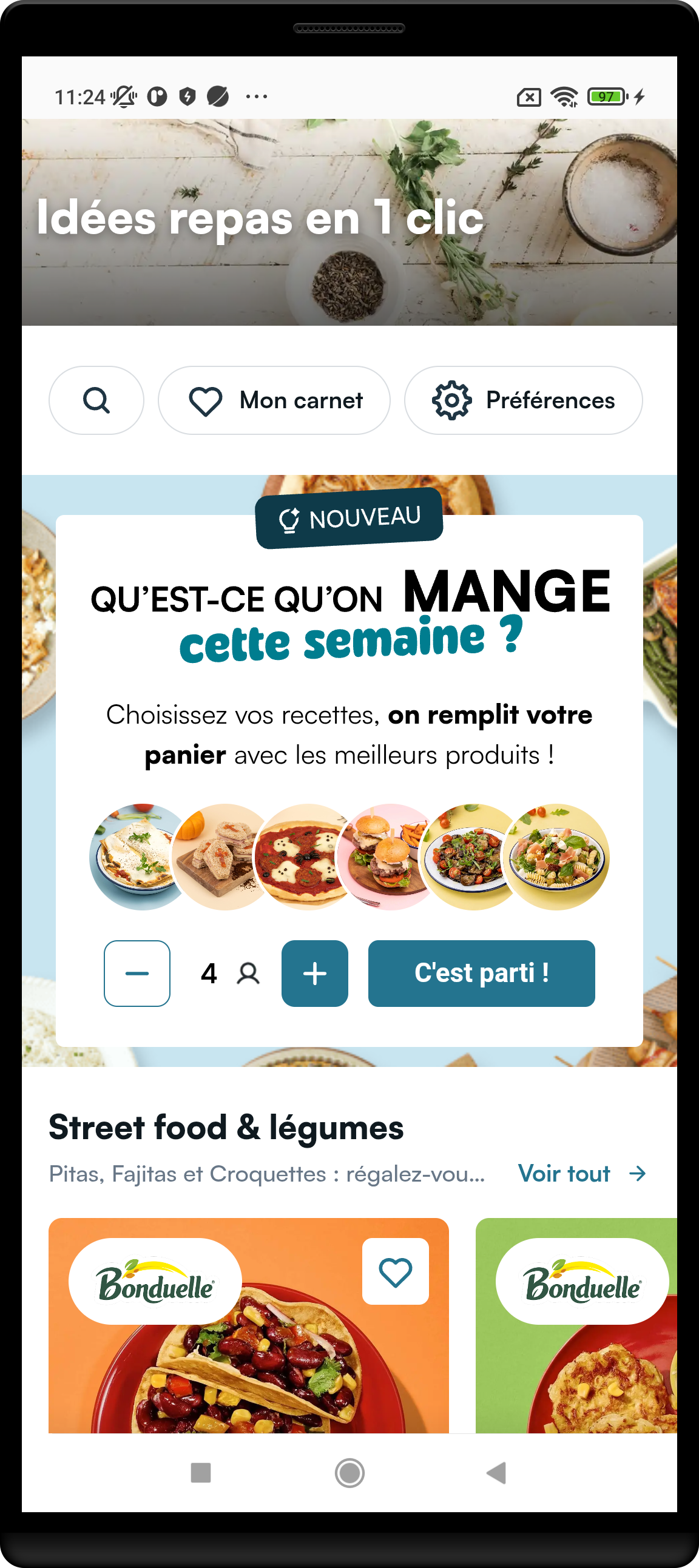

Visual Overview

Parameters

There is a single catalog entry point. You choose the starting page with route.

Parameter	Type	Required	Default	What it does
route	FeatureRoute.Catalog	no	FeatureRoute.Catalog.Home()	Which catalog surface to open first (home, category, favorites, …).
navigationCallback	CatalogNavigationCallback	yes	—	How Mealz hands control back to your app (login, store, cart, exit, optional home).
modifier	Compose Modifier	no	fills max size	Layout (Compose / KMM).
stateContent	screen state overlays	no	library default	Optional loading / error UI while the WebView boots.

FeatureRoute.Catalog variants

Route	Parameters	Use when
Home(displayVariant?)	optional recipe-card variant	Default catalog landing (categories).
Category(categoryId, title, displayVariant?)	Mealz category id + title shown in UI	Deep-link / open one category.
List(displayVariant?)	—	Recipe list (e.g. search results shell).
MySpace(defaultSelectedTab?, displayVariant?)	MySpaceTab.Favorites or History	My Space with optional default tab.
Favorites(displayVariant?)	—	Favorites as root (wraps My Space favorites).
History(displayVariant?)	—	Order History as root.
MyMeals(showTabSelector, defaultSelectedTab?, basketTransferUrl?)	see My Meals (Catalog journeys below)	Meals / products in basket.

displayVariant (optional Int) selects the recipe-card visual variant inside catalog lists where supported.

iOS naming

Nested Kotlin route types flatten in Swift: FeatureRoute.Catalog.Home → FeatureRoute.Catalog.CatalogHome, MyMeals → CatalogMyMeals, etc. See the iOS inject sample below.

CatalogNavigationCallback

Callback	Required	What you must do
redirectToLogIn	yes	Open your login when Mealz needs an authenticated user.
redirectToStoreLocator	yes	Open your store picker when no store is selected (retailer).
exit	no	Dismiss / pop the Mealz catalog screen. Defaults to a no-op.
redirectToCart	no	Open your retailer cart / checkout. Defaults to null.
goToHomeCatalog	no	Open catalog home when a catalog sub-feature (opened as root) asks to leave for the main catalog. See below.

Why goToHomeCatalog?

This callback can look odd when you open FeatureRoute.Catalog.Home() — you usually leave it null. It exists for the case where you mount the catalog entry on a dedicated sub-feature as the root screen, for example:

• FeatureRoute.Catalog.Favorites
• FeatureRoute.Catalog.MySpace
• FeatureRoute.Catalog.MyMeals
• FeatureRoute.Catalog.History

Those surfaces can still request navigation to the main catalog home from inside the WebView (empty states, CTAs, …). Classic example: My Space / Favorites with no liked recipes — the UI offers a way to browse the catalog; your host should then open Catalog.Home (or your equivalent home route).

Wire goToHomeCatalog only when that sub-feature is presented as root (not already nested inside a full catalog journey that can navigate home itself). If unset, Mealz falls back to an in-WebView redirect to catalog home when possible.

Inject

CatalogScreen(
    route = FeatureRoute.Catalog.Home(),
    navigationCallback = CatalogNavigationCallback(
        redirectToLogIn = { /* open login */ },
        redirectToStoreLocator = { /* open store picker */ },
        exit = { /* pop / dismiss */ },
        redirectToCart = { /* open retailer cart */ },
        goToHomeCatalog = { /* optional: open Catalog.Home when Favorites/My Space/… is root */ },
    )
)

Catalog Journeys

Same entry point — only route changes:

• Favorites
• My Space
• My Meals
• Order History
